- • Nearfield & distributed PA
- • Foreground / background music, fill / delay
- • Portable and installed audio-visual systems
- • Conference centers, presentations, ballrooms and houses of worship
- • Compact voice reinforcement systems
- • Stage monitoring
- • 13000183 (230V)
- • 13000184 (115V)

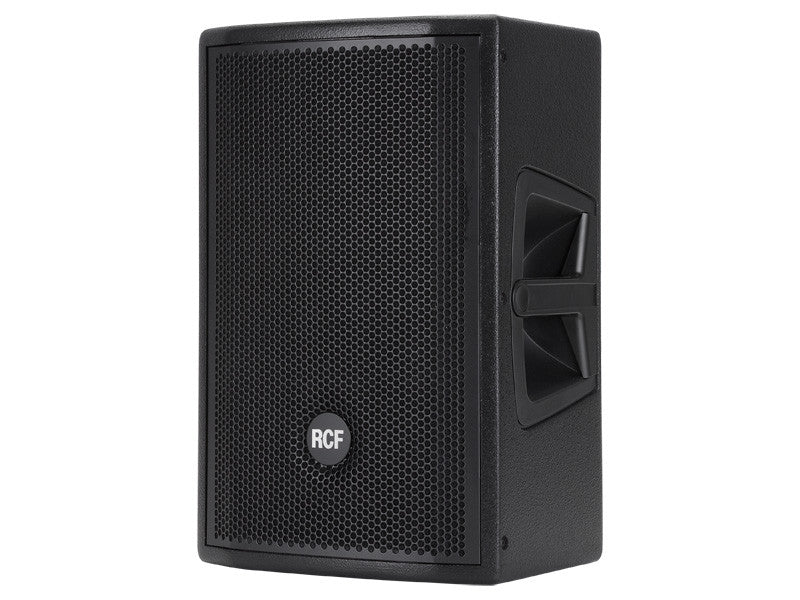

- 1500 Watt Peak, 750 Watt RMS digital amplifier
- 129 dB max spl
- 90 x 70, Wide dispersion constant directivity horn
- 10" woofer, high power neodymium 2.5" voice coil
- 1" HF driver, titanium dome, neodymium 1.75" voice coil
- PFC power factor correction
- Frequency Response -3 dB: 50 Hz ÷ 20 Hz
- Max SPL: 129 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 70°
- Compression Driver: 1" neo, 1.75" v.c.
- Woofer: 10" neo, 2.5" v.c
- Input signal: bal / unbal
- Input connectors: Combo xlr-jack
- Output connectors: xlr
- Input sensitivity: -2 dBu / +4 dBu
- Crossover frequencies: 1700 Hz
- Protections: Thermal, rms
- Limiter: Soft peak limiter
- Controls: Volume, side / floor, contour
- Total power: 1500 W PEAK
- High frequencies: 500 W PEAK
- Low frequencies: 1000 W PEAK
- Total power: 750 W RMS
- High frequencies: 250 W RMS
- Low frequencies: 500 W RMS
- Cooling: Convection / forced
- Connections: Powercon in / out
- Cabinet Material: Balitc birch
- Hardware: 6 x fly tracks
- Handles: 2 side
- Pole Mount/Cap: Yes
- Colour: Black
- Height: 515 / 20.27 mm/inch
- Width: 334 / 13.14 mm/inch
- Depth: 337 / 13.26 mm/inch
- Net Weight: 15.2 / 33.5 kg/lbs
AC PRO-FS
PROFESSIONAL LOUDSPEAKER FLOOR STAND - P/N 13360109
Steel speaker floor stand with folding base and telescopic rod. Tube diameter 35mm. Load capacity up to 50kg.
AC PRO-LF
PROFESSIONAL ADAPTER SLEEVE - P/N 13360111
Steel professional adapter sleeve for loudspeaker stands. Integrated expanding mandrel system which provides a tight and firm fit for the speaker. The moveable plastic splints separate the speaker from the stand creating a vibration-free connection.
AC PRO-PM
POLE MOUNT WITH RING LOCK - P/N 13360110
Steel pole mount accessory for a satellite loudspeaker on a subwoofer. Both ends of the pole mount are fitted with an expanding mandrel system for a tight and vibration-free fit for the base and satellite speakers.
AC S140
FLOOR STAND FOR LOUDSPEAKERS - P/N 13360036
Aluminum speaker floor stand with folding base and telescopic rod, Tube diameter 35mm.
Equipped with damping system and safety plug
AC PMX
SPEAKER POLE MOUNT - P/N 13360232
Speaker pole mount with pushbutton system and hand crank to avoid uncontrolled reverse motion. Locking screw provides additional safety.
AC S260
FLOOR STAND FOR LOUDSPEAKERS - P/N 13360035
Aluminum speaker floor stand with folding base and telescopic rod, tube diameter 35mm.
Equipped with damping system and safety plug; central die-cast joint.
