- • 13000481 (230V)
- • 13000482 (115V)
- 1400 Watt
- 130 dB max SPL
- 40 Hz 20 kHz frequency response

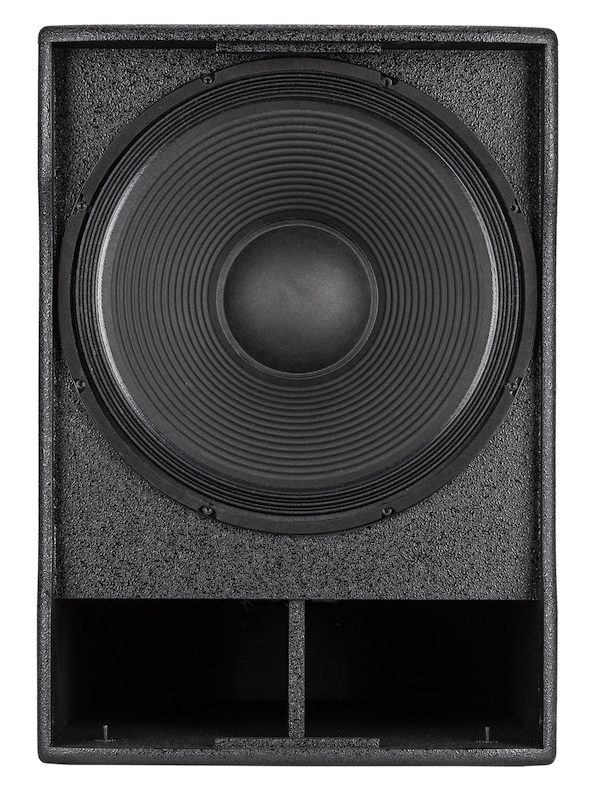

- 15" Woofer

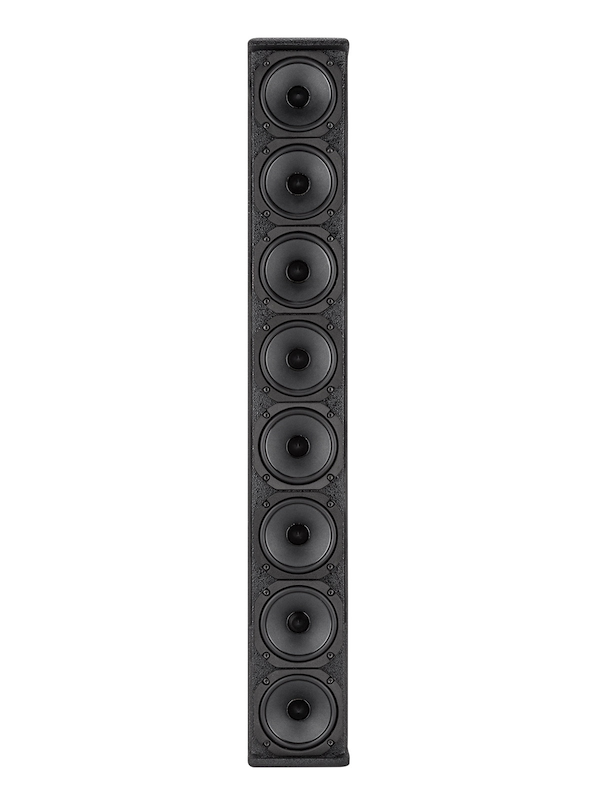

- 8 x 4" neodymium full-range woofer
- 90° x 30° slightly tilted pattern control
- Innovative DSP processing

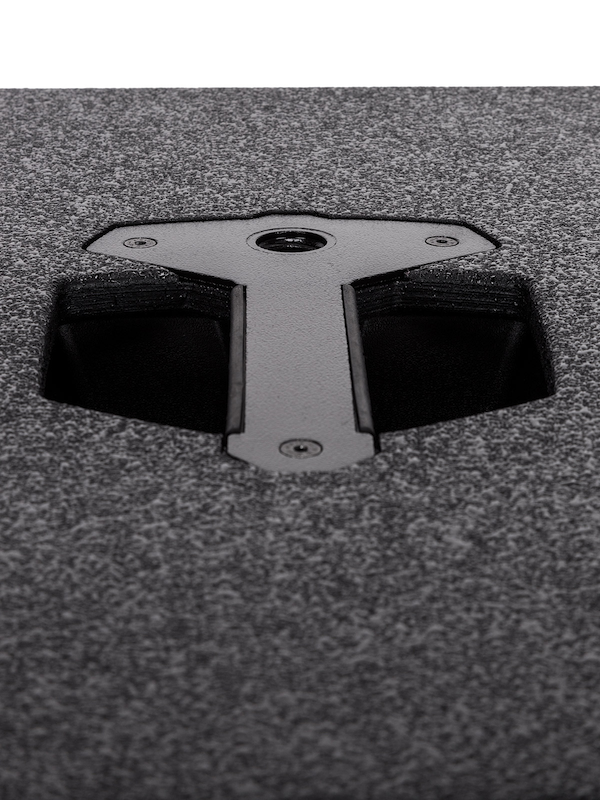

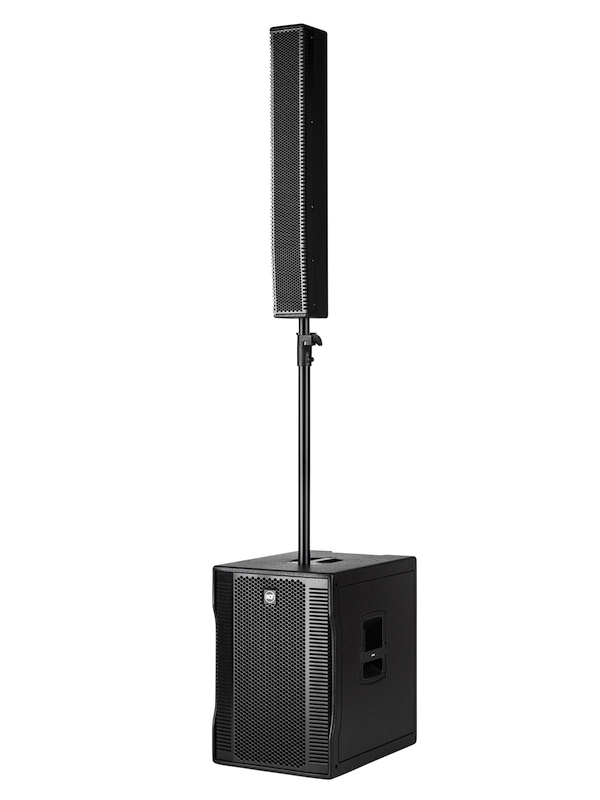

- Pole mountable, easy set-up and transportation
- Frequency Response -3 dB: 40 Hz ÷ 20 Hz
- Max SPL: 130 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 30°
- Fullrange: 8x4.0", 1.0"v.c.
- Woofer: 15", 3.0" v.c.
- Input connectors: Jack-XLR male
- Output connectors: XLR female
- Input sensitivity: -2 dBu / + 4 dBu
- Crossover frequencies: 180 Hz
- Protections: thermal, rms
- Limiter: Soft limiter
- Controls: Volume, EQ
- Total power: 1400 W PEAK
- High frequencies: 400 W PEAK
- Low frequencies: 1000 W PEAK
- Total power: 700 W RMS
- High frequencies: 200 W RMS
- Low frequencies: 500 W RMS
- Cooling: Convection
- Connections: VDE connector
- Cabinet Material: Baltic birch plywood
- Handles: 2 side, 1 top
- Pole Mount/Cap: Yes
- Colour: black
- Height: 2220/87.4 mm/inch
- Width: 410/16.14 mm/inch
- Depth: 560/22.05 mm/inch
- Net Weight: 34.8/76.72 kg/lbs
EVOX systems are driven from high power class D amplifiers. Each system features a real two way amplifiers with DSP controlled crossover. With careful crossover design and protections setting has been possible to reach pressures up to 6 dB more than traditional products with passive crossovers to satellites.
DSP PROCESSING
The EVOX 12 is powered by a 1400W peak power digital amplifier, split 400W for the HF and 1000W for the LF. Thanks to the frequency dependent drivers excursion and control of distortion, our processing is capable to guarantee an incredible and unmatchable output from this small systems. A dedicated vocal processing has been specifically studied for speech reproduction during presentations or conferences.

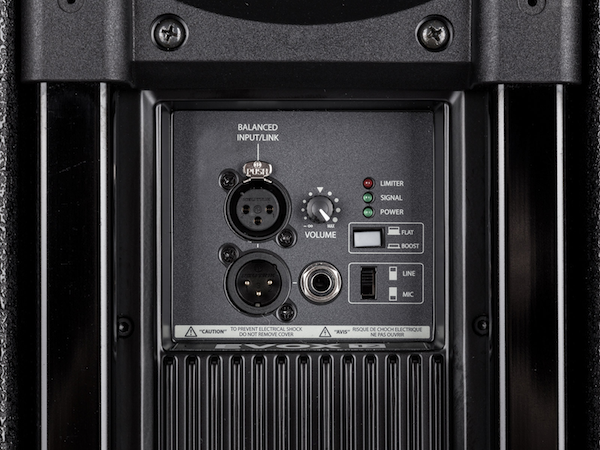

INPUT / LINK
MAIN XLR INPUT (BAL/UNBAL). The system accept female XLR input connectors and line level signals from a mixing console or other signal source.
LINK XLR OUTPUT. The output XLR male connector provides a loop trough for speakers daisy chaining.
Volume knob
Controls the volume of the power amplifier. The control ranges from - (maximum attenuation) to the MAX level (maximum output).
Status indicators
POWER INDICATOR. Power on indicator. When the power cord is connected and the power switch is turned on this indicator lights green.
SIGNAL INDICATOR. The signal indicator lights green if there is signal present on the main XLR input.
LIMITER INDICATOR. The amplifier has a built in limiter circuit to prevent clipping of the amplifiers or overdriving the transducers. When the peak clipping circuit is active the LED blinks orange. It is okay if the limit LED blinks occasionally. If the LED blinks frequently or lights continuously, turn down the signal level. The amplifier has a built in RMS limiter. If the RMS limiter is active the LED lights red. The RMS limiter has the purpose to prevent damages the transducers. The speaker shall never be used with the limit indicator red, continuous operation with the RMS protection active can cause damages to the speaker.
EQ SWITCH
“Boost” equalization is a loudness recommended for background music applications, when the system plays at a low level or when two systems are coupled. For all other applications “Flat” equalisation is recommended.
MIC/LINE SWITCH
A useful Mic/Line switch to adjust the input sensitivity is provided. When used just for speech, the Mic setting allows to use a microphone directly with the speaker. Set the selector to Line when using the speaker for live music or playback.

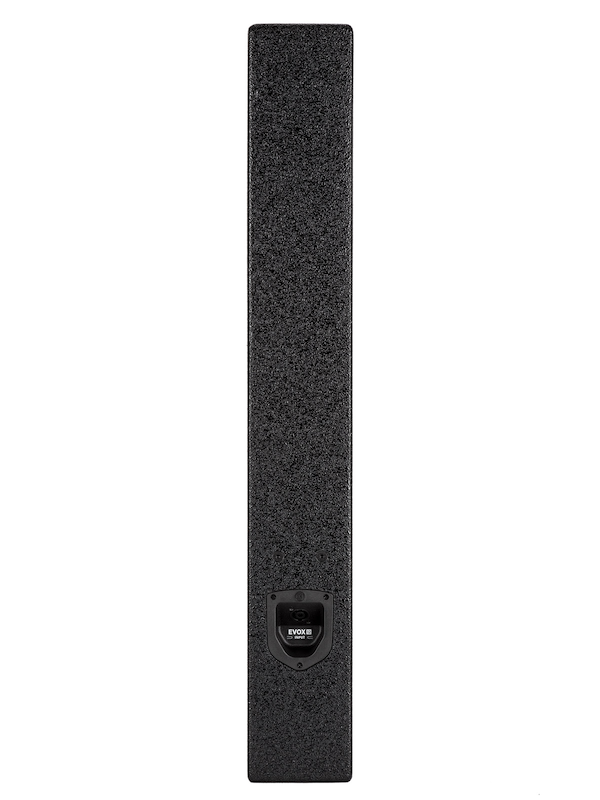

SPEAKON PANEL
SPEAKON RECEPTACLE.
The EVOX uses a SPEAKON locking 2-pole to link power from sub to satellite. Always use the specific power cord provided in the package.
AC PANEL
AC VDE RECEPTACLE.
The EVOX system uses a VDE 3-pole AC mains. Always use the specific power cord provided in the package.
POWER MAIN SWITCH.
The power switch turns the AC power ON and OFF. Make sure that the VOLUME is set to - when you turn on the speaker.
